How to access a container in Rancher from the command line

How to access a container in Rancher from the command line without SSH

If you have deployed an application pod in rancher, sometimes you have to access the running container for various tasks. Maybe, to check some files, monitor logs, run some commands, copy files, etc.

Assume you have an application pod running in Rancher as the following image.

Using the Web UI

One of the ways to access the container would be using the Rancher UI. If you click on the pod name and then on the next page, you can select Execute Shell from the Pod's context menu.

Then it is supposed to bring the command window in the web UI itself.

However, this method has its limitations. You cannot copy files to or from the Pod using the web UI itself.

Using Rancher CLI

The link to the CLI package can be found in the bottom right corner of the Rancher web UI.

Select the CLI client according to your OS and download.

I'm using Linux, so I've downloaded the Linux client.

Extract it.

tar -xf rancher-linux-amd64-v2.3.2.tar.gz

And navigate inside the extracted directory.

cd rancher-v2.3.2

You can find a binary file of the Rancher CLI there.

Before using the Rancher CLI we have to have the kubectl package installed.

You can refer to this page to install kubectl.

https://kubernetes.io/docs/tasks/tools/

Now, we are almost ready with the rancher CLI.

In order to use the rancher CLI commands, we have to have an access token. The CLI binary is using APIs to communicate with the Rancher server.

To create a token, go to the Rancher Web UI and select the API & Keys from the user context menu.

Then, you'll see the list of existing keys.

Click Add Key to create a new key.

It will be a good idea to select an expiration as a best practice.

Note: Make sure you don't set a scope here since you need to use it for the CLI. Due to a bug, this doesn't work in this Rancher version. Hopefully, this is fixed in the later versions (I didn't test yet though).

Then hit Create and it will show you the newly created tokens.

(I'll be deleting this token just after writing this 😋 )

Make sure you copy and keep all the information in a safe place as the message tells.

$ ./rancher login https://<SERVER_URL> --token <BEARER_TOKEN>

eg:

./rancher login https://myrancherhost:8443 --token token-9ls7g:4xzprvtn2ghgxkmsh6d5jz4txb6m5mpplm7h62kl5ptnfx6b6bt5wp

If login is a success, it will ask you to select a project.

Type the project number and hit enter. It will create some configs and save in your home folder.

Now we are ready to connect to our containers.

Hereafter it is always plain old kubectl commands.

If you want to execute bash in the container locate the pod and run the bash command for the container.

./rancher kubectl get pods -n mytestproject1

./rancher kubectl -n mytestproject1 exec -it myapp1-5c75bff649-hrxkn -- bash

How to copy a file to and from a container in Rancher

Again this is using the Rancher CLI as above.

Let's say I need to copy test.txt file to my container.

In the following command, the pod should be given as <namespace>/<pod name>:<destination dir>

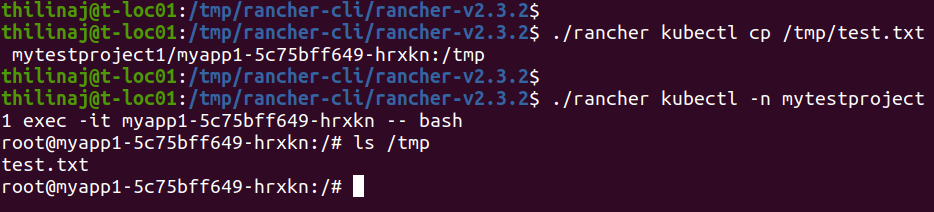

./rancher kubectl cp /tmp/test.txt mytestproject1/myapp1-5c75bff649-hrxkn:/tmp

If you need to copy a file from a container, just switch the source and the destination.

eg:

./rancher kubectl cp mytestproject1/myapp1-5c75bff649-hrxkn:/tmp/test.txt test.txt

All the rancher CLI commands can be found here https://rancher.com/docs/rancher/v2.0-v2.4/en/cli/

Make sure you select the correct Rancher version in the documentation. I'm running 2.3 a bit old version. So this article is based on that.

P.S. Of course if you have the access to the Kubernetes cluster nodes, you can SSH into one of the nodes and run any kubectl commands from there. However, some organizations may limit the physical SSH access to the nodes. In that case, this is a better way to do it.
